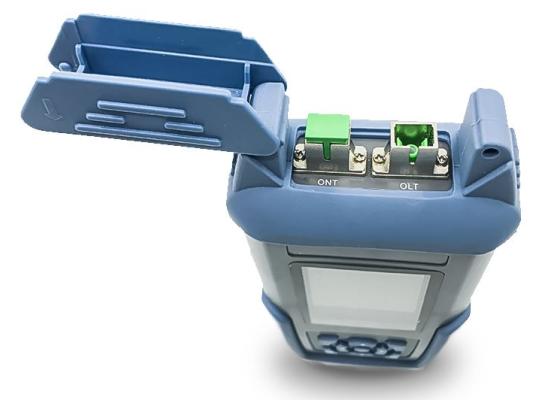

ST805C-X
| Kodas | 501589 |
Optinis galios matuoklis PON tinklams
Overview
PON Power Meter is specifically designed for the PON network construction and maintenance. It’s a useful site test tool for the engineers and maintenance operators of PON network of FTTX.
It can perform in-service testing of all PON signals (1310/1490/1550nm) on any spot of the network. Pass/fail analysis is conveniently realized through users’ adjustable threshold of every wavelength.
Main functions
- 3 wavelengths’ power of PON system synchronously: 1490nm, 1550nm, 1310nm;
- Threshold value setting function;
- Auto backlight off function;
- Display the voltage of battery;
- Power off automatically when it is in low voltage;
- Data Storage 1000 groups.
| Optical parameters | |||
| Standard wavelengths | 1310 (upstream) | 1490 (downstream) | 1550 (downstream) |
| Pass zone(nm) | 1260～1360 | 1480～1500 | 1530～1570 |
| Range(dBm) | -40～+10 | -50～+10 | -50～+25 |
| Max. permitted input power | 15dBm | 15dBm | 25dBm |
| Isolation @1310nm(dB) | >40 | >40 | |
| Isolation @1490nm(dB) | >40 | >40 | |
| Isolation @1550nm(dB) | >40 | >40 | |
| Accuracy of burst signal | Deviation < ±0.5dB@-10dBm | ||
| Other Parameters | |||
| Optical fiber type | SM 9/25um | ||
| Optical fiber connector | SC/APC | ||
| Accuracy | ±0.2dB/±0.5dB(burst mode) | ||
| Linearity(dB) | 0.1 | ||
| Through Insertion Loss(dB) | <1.5 | ||
| Resolution | 0.01dB | ||
| Unit | dBm /xW | ||
| General Specifications | |||
| Storage number | 1000 | ||
| Auto power off time | Yes | ||
| Battery | AA x 3 or AC/DC adapter | ||
| Working temperature | -10~60℃ | ||
| Storage Temperature | -20~70℃ | ||
| Dimension (mm) | 42 x 90 x 195 | ||
| Weight (g) | 350 | ||
